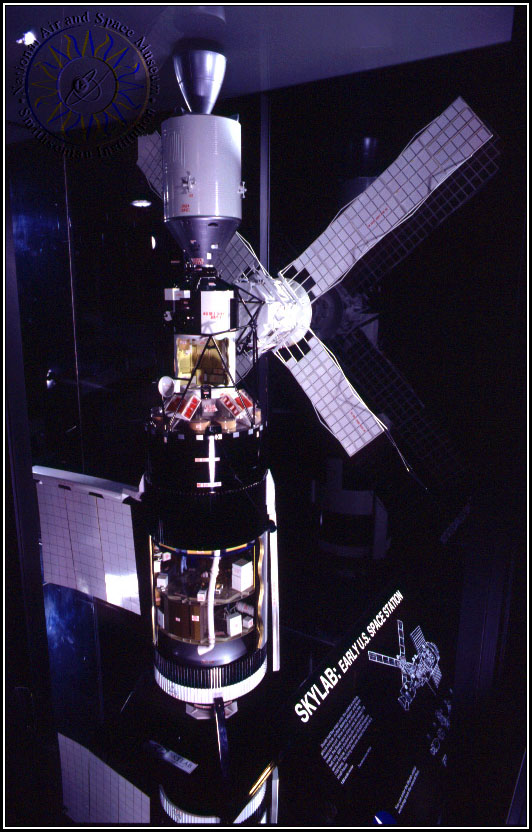

Skylab, 1:20 scale model
112 k jpeg
SI#: 97-16268-7

SKYLAB SPACE STATION

Skylab had four major units: the orbital workshop, airlock module, multiple docking adapter, and Apollo telescope mount. When in orbit, as shown by this model, the Skylab space station was 36 meters (118 feet) long. With a docked Apollo command and service module, it weighed about 90,600 kilograms (100 tons). The living area was about the same as a small house.

1:20 scale model

Transferred from NASA

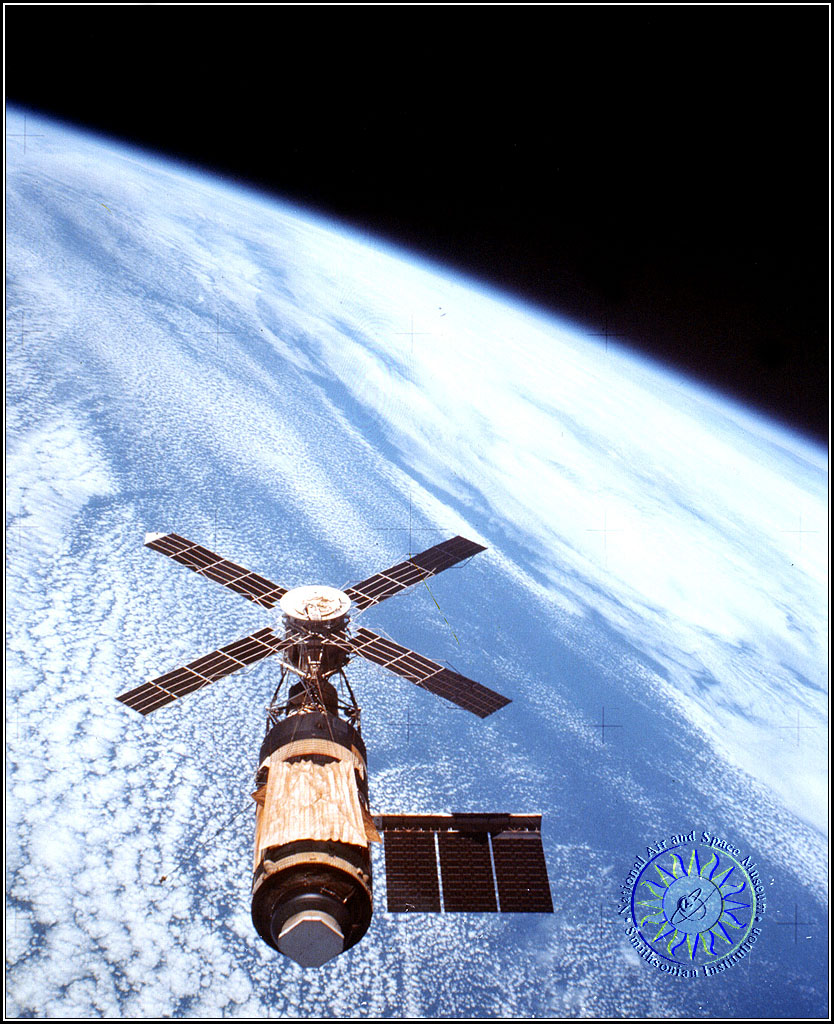

Skylab in orbit
248 k jpeg
NASA#: 74-HC-78

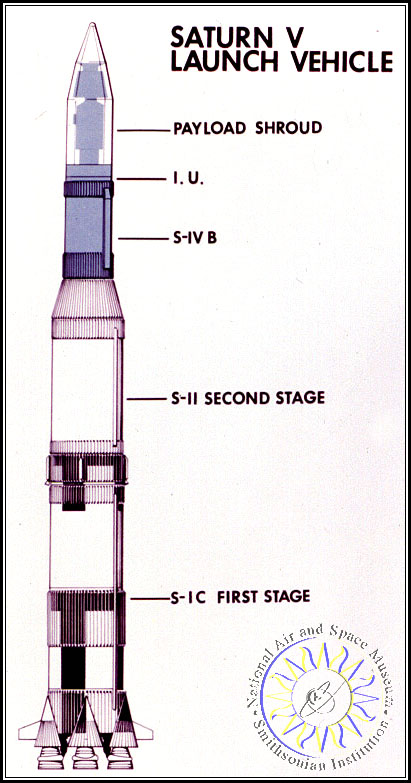

Apollo telescope mount

Multiple docking adapter

Instrument unit

Orbital workshop

Second stage

First stage

Labels for diagram of Skylab launch config., Saturn V
77 k jpeg
NASA#: HQ ML70-5621

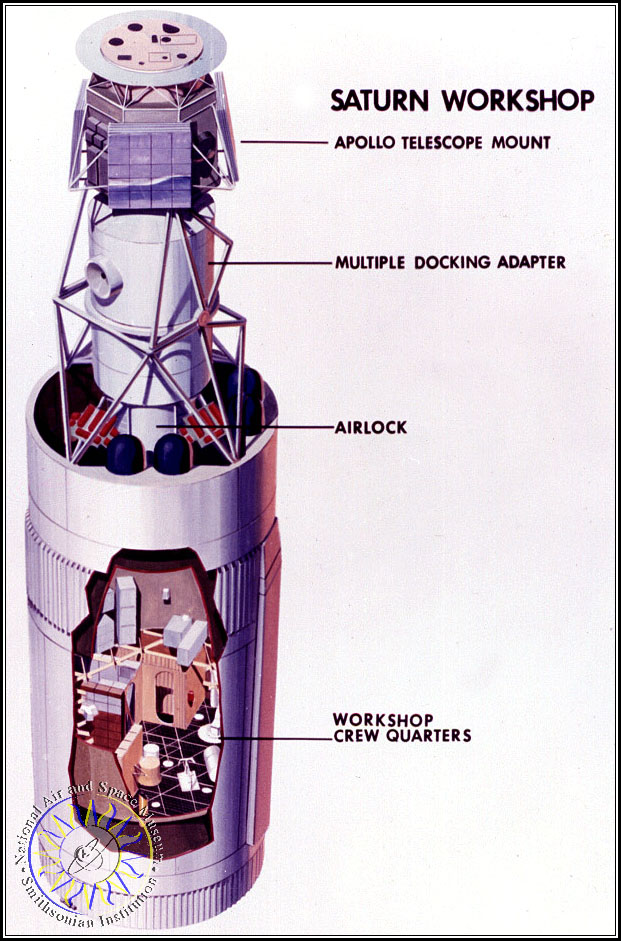

ORBITAL WORKSHOP

Saturn rocket stage outfitted as living quarters, work areas, and storage space.

Length: 15 m (48 ft)
Diameter: 6.5 m (22 ft)
Weight: 35,400 kg (78,000 lb)
Labels for diagram of Skylab launch config., Saturn V
150 k jpeg
NASA#: HQ ML70-5621
