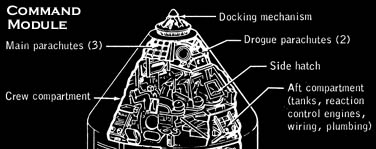

The cone-shaped command module is divided into three compartments: forward, crew, and aft. The forward compartment is at the cone's apex, the crew compartment is in the center, and the aft compartment is in the base, or blunt end, of the craft. The forward compartment contained the parachutes and recovery equipment. The aft compartment is divided into 24 bays by the structural supports. It contains 10 reaction control engines, fuel, oxidizer and helium tanks for the roll, pitch and yaw thrusters, and the crushable ribs of the impact attenuation system. The crew compartment has a volume of 5.9 cubic meters (210 cubic feet). It contains three couches for the crew during launch and landing. The couches are arranged so that each astronaut faces the main instrument panel. During flight, the astronauts could fold-up the couches to make more room in the spacecraft. Near the feet of the couches, in the lower equipment bay, there is enough room to stand up.

Next page

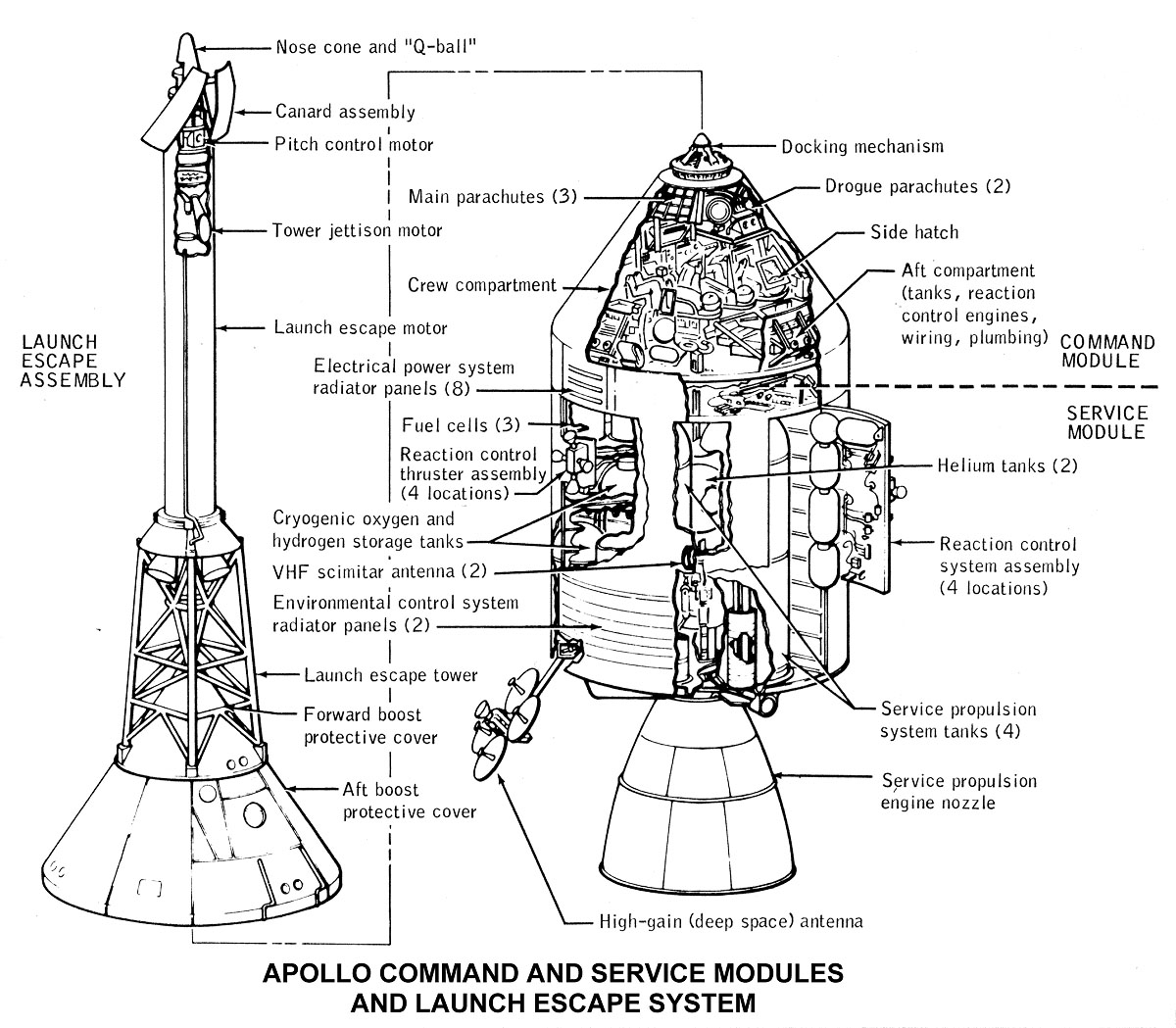

Main diagram excerpted from Command & Service Module and Escape Launch System diagram. 78k jpg or large 233k jpg

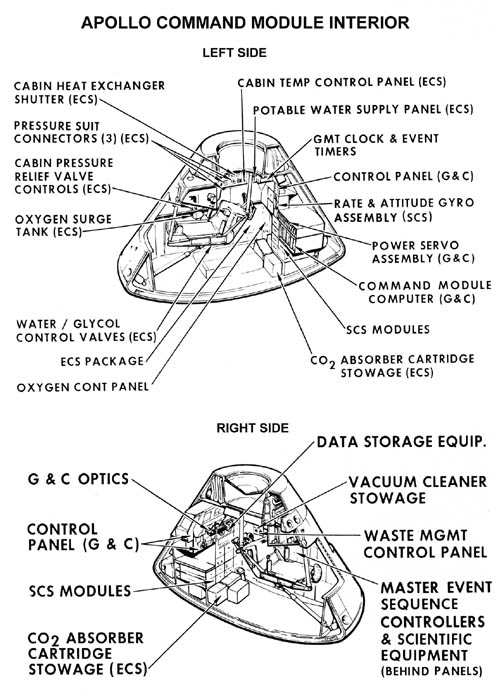

1 Command Module interior diagram.76k jpg or large 283k jpg

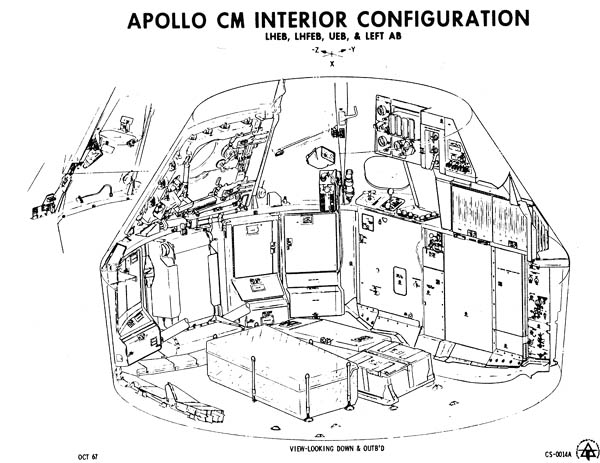

2 Command Module interior diagram. 95k jpg or large 481k jpg
Diagram credits: NASA History Office
